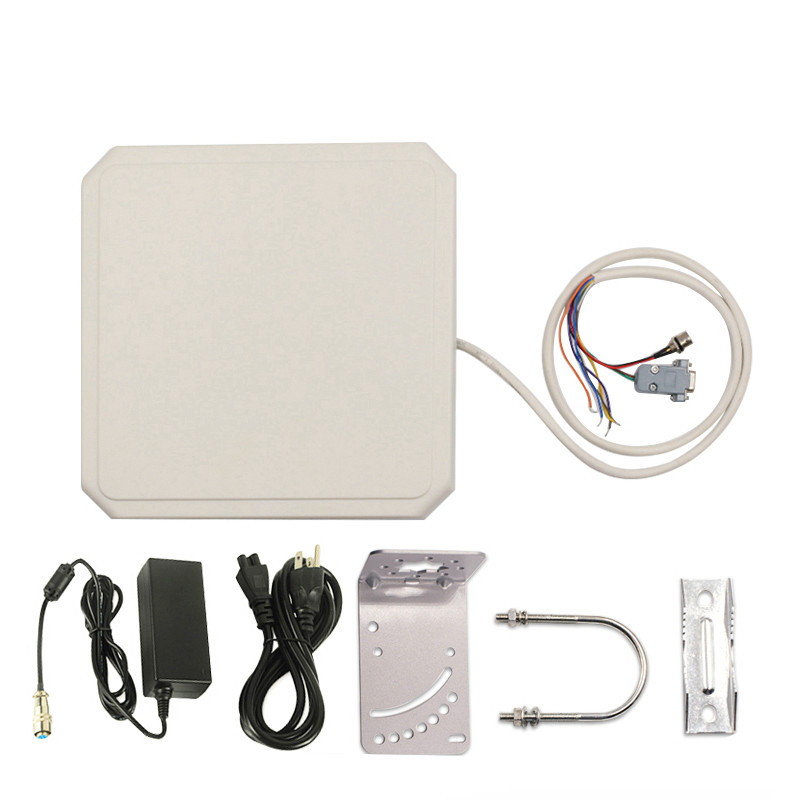

FDY-8120M UHF RFID Middle Range Integrated Reader
Feature:
1- Based on Indy R2000 chip.
2- The performance of INDY R2000 to an extreme.
3- Excellent thermal performance, long working hours without significant thermal.
4- Full industrial-grade design, the core components are military grade.
5- Ultra-low-power design, reducing energy consumption.
6- Internal software is optimized repeatedly.
7- Multiple protection circuit, providing comprehensive protection.
Specification:
|
Dimension |
280mmx280mmx40mm |
|
Weight |
1.9KG |
|
Material |
Die-cast aluminum body & Engineering plastic antenna panel |
|
Operating Temperature |
- 20 °C - + 55 °C |
|
Storage Temperature |
- 20 °C - + 85 °C |
|
Humidity |
< 95% ( + 25 °C) |
|
Air Interface Protocol |
EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C |
|
Working Frequency |
860MHz – 960MHz |
|
Supported Regions |
US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 with & without LBT regulations Mainland China / Japan / Korea / Malaysia / Taiwan |
|
RF output interface |
4 N-type connector / Integrated Antenna 8dBi |
|
Output Power |
30dBm |
|
Read Range |
> 15M |
|
Multi-tags Identification |
> 500 pcs |
|
Read Speed |
> 500 pcs/s |
|
Tag RSSI |
Supported |
|
Antenna Detector |
Supported |
|
Working Mode |
Single/DRM |
|
Communication Interface |
Serial: RS-232 Console (DB9) Wiegand 26 |
|
I/O Port |
4 configurable IO |
|
Max Power Consumption |
< 7W （RF Output 30dbm） |
|
Heat Dissipation |
Air cooling |
